CHEROKEE Series
The electric strecther for the English-speaking world
01
Control panel
New and improved control panel, now more intuitive, autonomous and functional.
03
Drive handles
Product certification
All Kartsana products comply with the EN 1865 and 1789 standards.
CHEROKEE Series: Dimensions and weight
| TG-1000UK | ||
|---|---|---|
| H | Max. height. (mm) | 948 |
| HC | Max. adjustable height(mm) | 900 |
| H2 | Min. height. (mm) | 468 |
| L | Length (mm) | 1970 |
| L2 | Lenght closed (mm) | 1607 |
| L3 | Lenght open (mm) | 2120 |
| W | Width (mm) | 567 |
| Load capacity (Kg) | 300 | |
| Weight (Kg) | 69 |

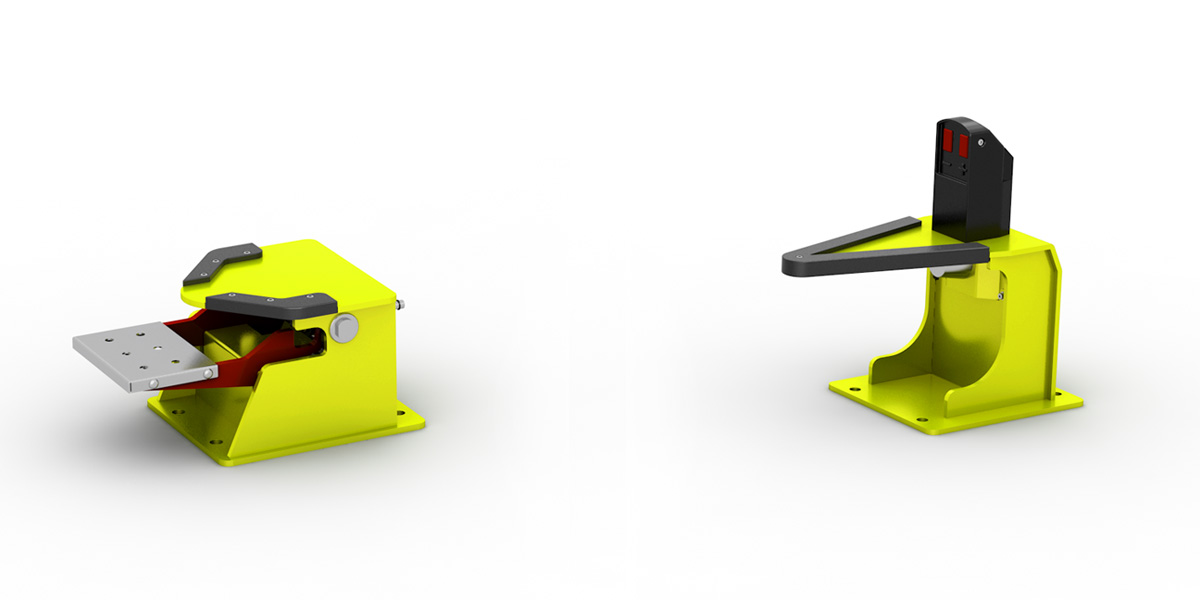

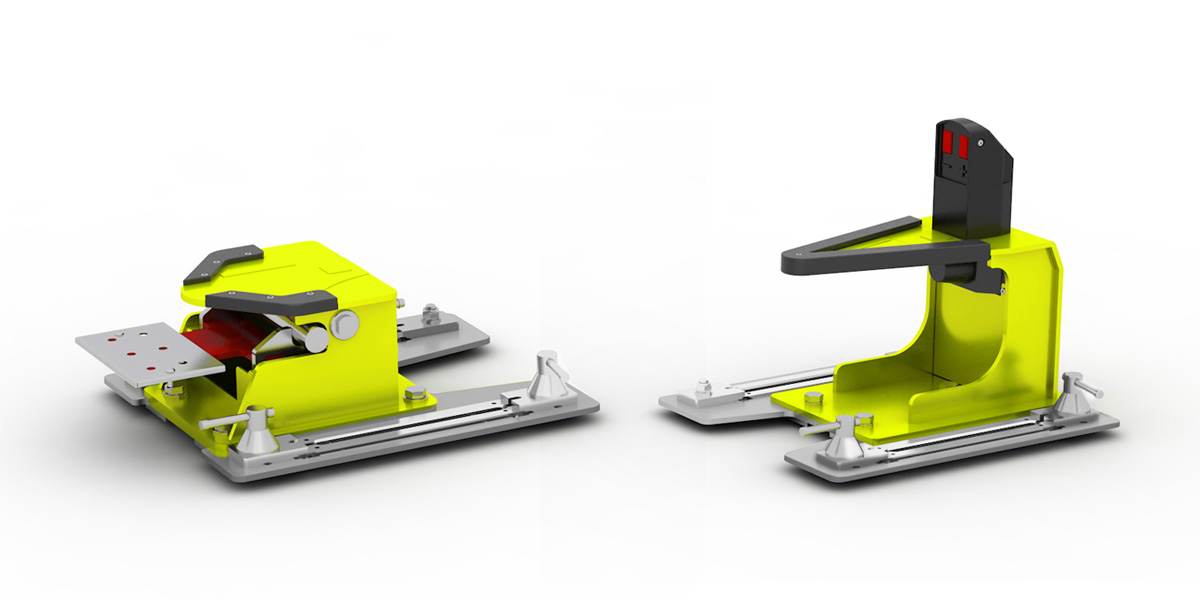

CHEROKEE fixation: Dimensions and weight
| SET | SET | ||||
|---|---|---|---|---|---|
| R-100F | R-100R | R-102 | R-103 | ||
| Height (mm) | 327 | 146 | 326,6 | 146 | |
| Length (mm) | 332 | 337,5 | 385 | 443,5 | |
| Width (mm) | 190 | 200 | 329 | 329 | |
| Weight (Kg) | 8 | 8,5 | 10 | 10,5 | |
Certifications
